Name: High Precision Ion Chromatography Instrument for Anions Cations Simultaneously Analysis
Brand: Anhui Wanyi Science and Technology Co., Ltd.
SKU: IC6600
Price: 15,400.00 USD
Availability: InStock

À la maison > produits > Ion Chromatography Instrument >

High Precision Ion Chromatography Instrument for Anions Cations Simultaneously Analysis

Place of Origin:

Anhui, China

Nom de marque:

Wayeal

Certification:

Model Number:

IC6600

Nous contacter

Demandez un devis

High Precision Ion Chromatography Instrument for Anions Cations Simultaneously Analysis

Détails du produit

Stabilité de débit:

<0.1%

Taux de réglage du débit:

<0.1%

Linéarité:

>0,999

Résolution du détecteur:

≤1%

Volume d'injection:

10 μl à 4 000 μl

Position d'injection:

120 positions

Contamination croisée:

<0,01%

Capacité de la colonne:

2 pièces, 250 mm et 150 mm

Conditions de paiement et d'expédition

Minimum Order Quantity

1 Unit

Prix

Negotiate

Packaging Details

Wooden Case

Delivery Time

35 days

Payment Terms

T/T

Supply Ability

30 Units/Month

Produits connexes

IC6600 Ion Chromatography Instrument With Reagent-free Eluent Generator

Obtenez le meilleur prix

High Precision Ion Chromatography Instrument for Anions Cations Simultaneously Analysis

Obtenez le meilleur prix

2 Columns Capacity Ion Chromatography Instrument With 120 Injection Positions

Obtenez le meilleur prix

Modular Dual System Design Ion Chromatography Machine with Flow Rate 0.001~12.000mL

Obtenez le meilleur prix

Nous contacter

+8613586823203

export@wayeal.com.cn

Contactez-nous maintenant

Description du produit

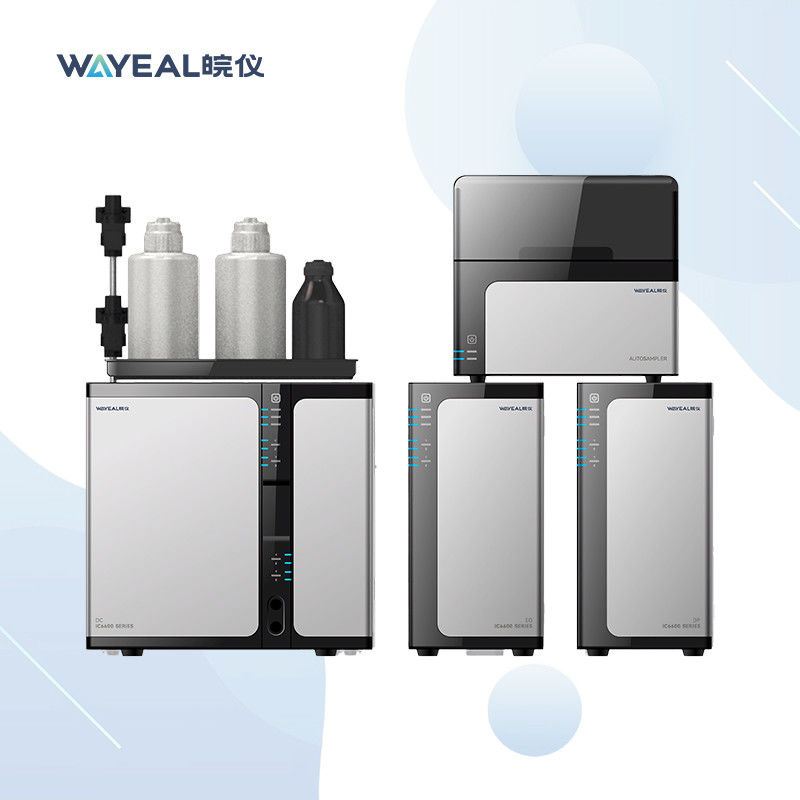

Introduction of IC6600 Ion Chromatography Machine

The IC6600 multifunctional ion chromatograph adopts a brand-new modular design, offering flexible configuration and powerful performance. The system supports time-sharing injection, simultaneous injection, and online enrichment autosamplers, enabling automated operations ranging from simple sample introduction to complex sample processing. The "water-only" eluent generator can produce the required eluent online, achieving gradient elution under isocratic pump conditions. This reduces costs, significantly improves the reproducibility of experimental results while minimizing labor requirements, and lowers the risk of contamination.

Technical Parameters of IC6600 Ion Chromatograph:

Product Name	Multifunctional Ion Chromatography
Model	IC6600
Working power	220V, 50Hz
Ambient temperature	10-40°C
Relative humidity	20-85%
Qualitative repeatability	≤0.1%
Quantitative repeatability	≤0.5%
Pump flow rate range	0.001~12.000mL/min
Pressure resistance of pump head	0-40MPa
Flow setting error	<0.1%
Flow stability	<0.1%
Pressure display accuracy	0.001MPa
Pressure plusation	<0.25%
Conductivity detector
Baseline noise	≤0.03%FS
Baseline drift	≤0.1%FS
Mini detectable concentration (Cl):	≤0.0001μg/mL
Mini detectable concentration (Li):	≤0.00005μg/mL
Mini detectable concentration (NO3):	≤0.001μg/mL
Mini detectable concentration (Na+):	≤0.001μg/mL
Mini detectable concentration (Ca2+):	≤0.005μg/mL
Conductivity cell volume	≤0.4μL
Conductivity detection range	0-45000μS/cm
Detector resolution	0.00238nS/cm
Conductivity cell temperature setting error	±0.01°C
Conductivity cell temperature display resolution	0.001°C
Conductivity cell temperature control range	Detector temperature zone temperature +5°C-65°C
Conductivity cell temperature control stability	0.05°C
Conductivity cell temperature setting value error	0.1°C/h
Ampere detector
Type	Thin-layer structure, automatic range
Driving voltage range	-2.0V-2.0V
Drive voltage resolution	0.001V
Output signal range	Integral mode: 50pc-200uC DC mode: 1pA-74μA
Noise	Integration mode<30pC DC mode<5pA, DC mode static noise<1pA
Cell material	Titanium
Pool volume	<0.2μL
Maximum pool pressure	0.7MPa
Minimum detectable concerntration	I-0.001μg/mL
Minimum detectable concerntration fructose	0.01μg/mL
UV Detector
Wavelength indication error	0.1nm
Wavelength repeatability	0.1nm
Mini detectable concentration	BrO3-0.0005μg/mL
Mini detectable concentration	CrO42-0.001μg/mL
Qualitative repeatability	≤0.05%
Quantitative repeatability	≤0.3%
Suppressor
Dead volume	50μL
Inhibition capacity	170ueq/min
Pressure resistance	3MPa
Column oven
Temperature range	Room temperature +5°C~70°C
Temperature control stability	0.1°C/h
Error of temperature setting value	0.05°C
Autosampler
Number of samples	≥120 (1.5ml sample bottle)
Temperature	4~30°C
Linear	>0.999
Cross-contamination	<0.01%
